Introduction:

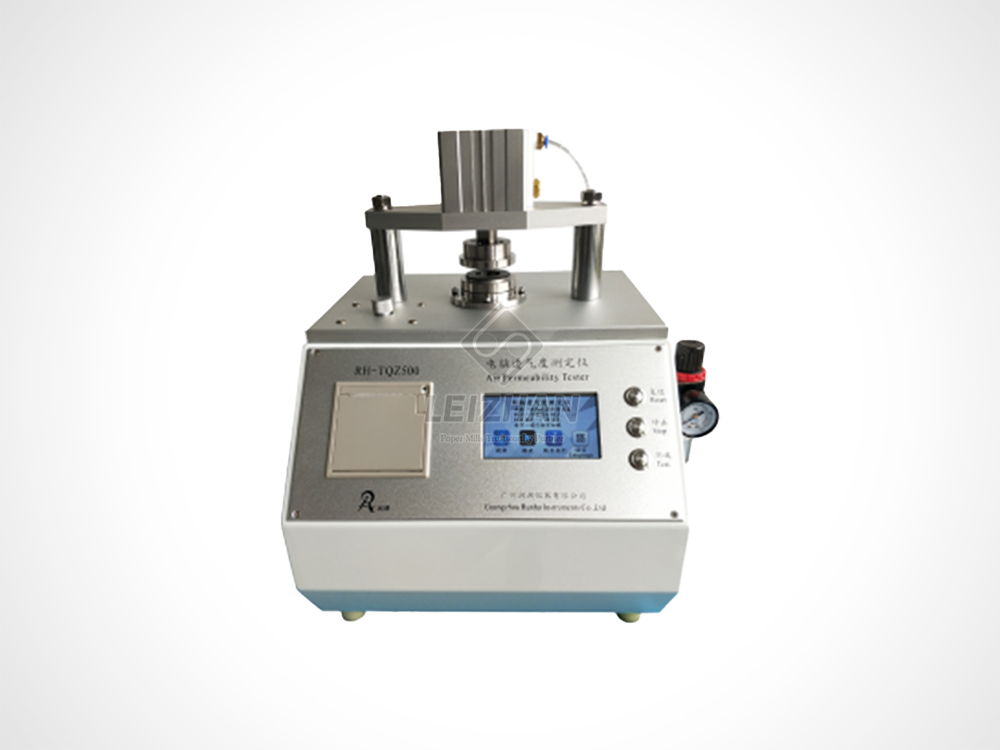

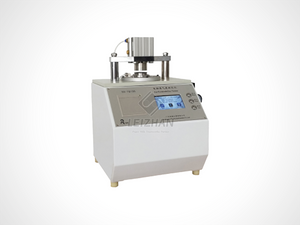

RH-TQZ500 Fabric Air Permeability Tester adopts the latest technology and the most versatile test method. It is an ideal instrument for testing the permeability of leather, cloth, fabric, paper, cardboard or other sheet. RH-TQZ500 Fabric Air Permeability Tester is a fully integrated automatic instrument. The test method takes into account various methods such as Schopper method, Bentsen method and Gurely method etc.
Standards:
ISO9237-1995、GB/T5453-1997、GB/T458、ISO5636/2、QB/T1667、GB/T22819、GB/T23227、ISO2965、YC/T172、GB/T12655、ASTM D737
Technical Parameters:
Measure Range | 0~200 (Pa/ cm²)、0～2000L/dm²/min 0~3000mm/s、0~3300μm/(Pa•s) |
Unit | Pa/ cm²、Pa、L/dm²/min、μm/(Pa•s)、mm/s、m/s |
Accuracy | 0.01 (Pa/ cm²) 0.1Pa 0.01 L/dm²/min 0.1mm/s |
Linear error | <1% |
Measuring Area | 5cm² 20cm² 10 cm² |
Air Flow | 8L/min（Mask Test） ，0~100L/min（Fabric Test） |
Pressure Difference | 0kPa～2kPa |
Weights | About 32kg |
Dimensions | 420×340×480 mm |
Power | AC110~240V |
Display | Touch screen in English display |
Working Principle:
According to the principle of pressure difference method, place the pre-processed sample between the upper and lower test heads. A constant pressure difference is formed on both sides of the sample. Under the action of pressure difference, the air flows from the upper test head through the sample to the lower test head, and the air permeability of the sample is calculated according to the area, pressure difference and flow rate of the sample.
Product Features:
1.Using US computer chip and stepper motor, coupled with reasonable design precision machining, to ensure the equipment is of high accuracy and repeatability. The calibration of the pressure sensor and flow is traceable.
2.The instrument uses microcomputer technology, the test process is fully automated, fast and accurate. Touch-screen display results, and data recording and processing functions, with printing output.
3.This instrument has the high superiority. It can set the higher pressure difference for the paper with the lower permeability, and set the lower pressure difference for the paper with the higher permeability, easily and accurately measure the result.
4.The test of the permeability tester is automatic and fast, and the accuracy of the test results is guaranteed. This instrument effectively avoids these problems such as mishandling or low reproduction rate of test results.
