Waste paper recycling operations face a constant operational tension. Plant managers must hit target pulp brightness without losing valuable fiber and mineral filler to the reject stream. Misaligned parameters in legacy systems lead to excessive chemical expenditure, reduced fiber yield, and lower overall plant profitability. You cannot afford to lose usable fiber while trying to remove microscopic ink particles.
Mastering the physical and chemical parameters of a Flotation Deinking Cell separates a marginal recycling operation from a highly profitable, scalable one. Balancing aeration, chemical dosing, and system architecture determines your success. We will explore the exact mechanisms driving ink detachment, bubble attachment, and froth removal. This ensures your facility meets strict brightness targets while protecting your fiber yield.
Selectivity is the Primary Metric: Evaluating equipment and parameters must center on the "Z-factor" (deinking selectivity)—the ratio of ink removed to fiber/filler lost.
Chemical Optimization Dictates Margins: High pH and precise surfactant dosing improve ink detachment, but over-application causes froth management issues and water loop contamination.
Yield vs. Brightness Trade-offs: Pushing a single flotation cell to maximum ink removal inevitably degrades fiber yield; multi-stage (cascade) configurations are essential for maximizing ROI.
Equipment Modernization: Upgrading a pulp deinking machine requires auditing current aeration rates, bubble size distribution, and automation capabilities to ensure scalable performance.

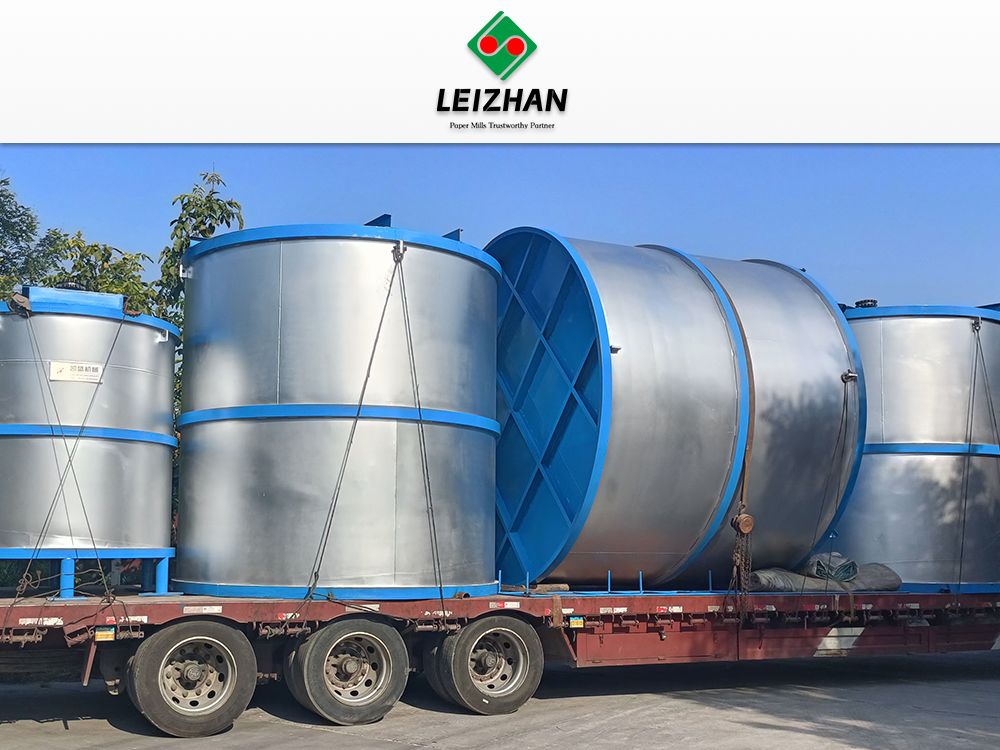

The Role of the Flotation Deinking Cell in Recycled Paper Processing
Problem Framing (Success Criteria)
Defining baseline operational goals is the first step in optimizing any recycling facility. You must establish clear success criteria for the final pulp before it hits the paper machine. These targets typically include specific ISO brightness levels, acceptable dirt counts measured in parts per million (ppm), and a minimum viable fiber yield. Most modern facilities processing Mixed Office Waste (MOW) or Old Newsprint (ONP) target a fiber retention rate greater than 90%. Falling below this threshold indicates severe mechanical or chemical inefficiencies in the separation process.
Achieving these targets simultaneously requires precision. Aggressive ink removal often strips away usable fines and mineral fillers. This degrades the final sheet formation, reduces opacity, and increases solid waste disposal volumes at the mill. Operators must balance the mechanical forces of the equipment against the chemical environment of the pulp slurry. Success means removing visible specks and microscopic ink particles while leaving the cellulose fibers entirely intact and ready for the forming section.
Comparing Flotation to Washing
Industry professionals rely on two primary methods for ink removal: washing and froth flotation. Washing systems dilute the pulp heavily and use screens or deckers to wash away very small particles. This method works well for flexographic inks and particles smaller than 10 microns. However, washing inherently causes massive yield loss. It washes away valuable mineral fillers and small cellulose fines alongside the ink, sending usable material straight to the effluent treatment plant.
Froth flotation operates on an entirely different physical principle. It targets larger ink particles, typically ranging from 10 to 100 microns. By introducing air bubbles into the slurry, hydrophobic ink particles attach to the bubbles and rise to the surface. This creates a reject froth layer. Flotation inherently preserves much higher yields than washing. However, it requires stricter parameter control to function optimally. If you mismanage the aeration or chemical dosing, you will either fail to remove the ink or accidentally float usable fibers into the reject stream.
| Process Characteristic | Froth Flotation | Pulp Washing |
| Target Particle Size | 10 to 100 microns | Less than 10 microns |
| Primary Ink Types | Offset, laser, toner, oil-based | Flexographic, water-based |
| Typical Fiber Yield | 90% - 95% | 75% - 85% |
| Water Consumption | Moderate (operates at 1-1.5% consistency) | High (requires heavy dilution) |
| Ash/Filler Retention | High (can be tuned via chemistry) | Very Low (washes out easily) |
Defining Deinking Selectivity (Z-Factor)
You cannot improve what you do not measure. In recycled paper deinking, the industry-standard evaluation lens is selectivity. We define this using the Z-factor. The Z-factor calculates the ratio of ink removed to the total fiber and filler lost in the process. It serves as the ultimate benchmark for evaluating equipment efficiency across different raw material inputs.
A high Z-factor indicates a highly selective process. The system removes the maximum amount of ink while leaving the fiber behind in the accepts flow. A low Z-factor means the system operates inefficiently. It might remove ink, but it drags too much valuable material into the reject froth. Evaluating your operation through the lens of the Z-factor forces you to look beyond simple brightness metrics. It ensures you maintain high ink removal rates alongside maximum fiber yield, directly impacting the mill's bottom line.
Evaluating Physical Parameters for Optimal Flotation Cell Performance
Pulp Consistency and Aeration Rates
Pulp consistency dictates the fluid dynamics inside the cell. The ideal consistency range typically falls between 1% and 1.5%. Operating above 1.5% creates a highly viscous slurry. This dampens bubble movement and prevents adequate mixing. Ink particles struggle to collide with air bubbles in thick pulp, leading to poor brightness gains. The slurry acts like a sponge, trapping air and causing the entire tank to overflow unpredictably.
Conversely, operating below 1% requires massive water handling capabilities. It increases pumping energy and reduces the overall production capacity of the system. You end up spending electricity to pump water rather than fiber. Aeration rates directly impact the probability of ink-bubble collision. Injecting more air increases the surface area available for ink attachment. However, excessive aeration introduces severe risks. High air volumes create turbulent hydraulic flows. This turbulence physically entrains usable fibers, dragging them upward into the froth layer. You must tune the air-to-stock ratio to maximize ink collision while minimizing the hydraulic entrainment of cellulose.
Bubble Size Distribution (BSD)
The physics of ink particle attachment rely heavily on bubble diameter. Ink particles in modern recycling streams typically measure between 10 and 100 microns. To capture these particles effectively, you need specific bubble sizes. If a bubble is too large, it rises too quickly. The resulting hydrodynamic bow wave pushes the small ink particles away, preventing attachment. If a bubble is too small, it lacks the buoyancy to carry heavy ink agglomerates to the surface, leaving the ink suspended in the accepts flow.
Modern ink removal equipment utilizes advanced aeration nozzles to control air injection. These systems maintain a narrow, optimized Bubble Size Distribution (BSD). The ideal bubble diameter usually ranges from 1 to 2 millimeters. Maintaining this specific BSD ensures maximum collision efficiency. Over time, aeration nozzles wear out due to abrasive contaminants in the pulp. A worn nozzle might produce 5-millimeter bubbles, destroying your efficiency. Regular inspection and replacement of these injectors are mandatory for maintaining performance.
Temperature and Retention Time
Operating temperatures significantly influence both physical and chemical reactions in the slurry. Most facilities maintain temperatures between 40°C and 50°C. This specific heat range softens the ink binders. It also activates the chemical surfactants, allowing them to render the ink particles hydrophobic. Dropping below 40°C results in stiff ink particles that resist detachment from the fiber surface. Exceeding 50°C wastes thermal energy and can cause certain adhesives and stickies to melt, agglomerate, and redeposit onto the fibers or machine clothing.
Retention time represents the duration the pulp spends inside the cell. Analyzing the trade-offs of retention time is critical for plant design. A longer residence time increases the probability of ink removal. However, it exponentially increases the risk of fiber loss. Extended time in the cell allows more water to carry fibers into the froth layer. It also increases the energy consumption of the agitators and pumps. You must calculate the exact retention time needed to hit brightness targets without crossing into diminishing returns.
Chemical Parameter Trade-Offs in Recycled Paper Deinking
Surfactant Dosage, Froth Stability, and Water Hardness
Surfactants perform a dual role in the deinking process. Facilities commonly use fatty acid soaps or synthetic surfactants. First, these chemicals adsorb onto the surface of the detached ink particles. This renders the ink hydrophobic, meaning it repels water and seeks out air bubbles. Second, surfactants lower the surface tension of the water. This generates a stable froth layer at the top of the cell, trapping the ink until the mechanical scrapers or vacuum systems remove it.
Fatty acid soaps possess a critical dependency on water hardness. They require a specific calcium ion concentration to function. The calcium ions react with the soap to form insoluble calcium soaps. These precipitate out of solution and actively collect the ink particles. The target water hardness usually sits between 150 and 250 ppm of calcium carbonate. If your mill uses soft river water, the soap remains soluble and fails to collect ink. Operators must often add calcium chloride to artificially harden the water. If the water is too hard, you risk massive scaling on your equipment and piping.
Operators must carefully evaluate surfactant dosing. Over-dosing creates excessive, uncontrollable foam. This foam carries over into downstream processes, causing severe runnability issues on the paper machine, including pump cavitation and sheet breaks. Under-dosing results in poor ink collection and a brittle froth layer that collapses before removal, dropping the ink back into the pulp. You must find the precise dosage that stabilizes the froth without causing downstream contamination.
Alkalinity (pH) and Silicate Ratios
The chemical environment requires high alkalinity for effective ink detachment. Operating at a high pH, typically between 9.5 and 10.5, causes the cellulose fibers to swell. This physical swelling breaks the bonds between the fiber surface and the ink particles. Without this alkaline environment, mechanical agitation alone cannot detach stubborn offset or laser inks. Mills typically use sodium hydroxide to achieve this pH level during the pulping stage.
Sodium silicate plays a complex role in this alkaline environment. It acts as a stabilizer for hydrogen peroxide during bleaching stages, preventing the peroxide from breaking down prematurely. It also functions as a powerful dispersant, preventing detached ink particles from agglomerating into massive, unmanageable clumps. However, high silicate dosages can interfere with surfactant efficacy. Research shows that low silicate dosages combined with optimized, high surfactant dosages often yield the best deinking efficiency. You must balance these chemicals to maintain dispersion without killing your froth stability.
Managing Chemical Overuse and Water Loop Contamination
Modern facilities operate with highly closed water loops to conserve resources and meet environmental discharge limits. This creates severe implementation realities for plant managers. Every chemical added to the pulper eventually recirculates through the system. Chemical accumulation leads to a buildup of anionic trash. This dissolved and colloidal material interferes with retention aids on the paper machine, causing poor drainage and weak sheet formation.
Managing chemical overuse is mandatory in closed-loop systems. Excessive silicates, surfactants, and dispersants will negatively impact downstream processes. They blind forming fabrics and reduce sheet strength. You must mitigate this through precise dosing controls. Implement automated monitoring to measure chemical oxygen demand (COD) and cationic demand in the water loop. This ensures you only add the exact chemical volume required for ink removal, preventing systemic contamination and protecting the paper machine's efficiency.
Evaluating Trade-Offs: Ink Removal vs. Fiber Yield
Mitigating Valuable Fiber and Mineral Loss
Yield loss occurs through two distinct mechanisms. The first is true flotation. This happens when cellulose fibers accidentally become hydrophobic due to chemical contamination or excessive sizing agents in the waste paper. They attach to bubbles and float away just like ink. The second, and more common mechanism, is physical entrainment. As bubbles rise, they drag water with them. This water carries suspended fibers and mineral fillers into the froth network, trapping them in the reject stream.
Understanding realistic benchmarks helps you evaluate your system. In a well-optimized plant, fiber yield averages around 94%. However, filler and mineral yield can vary drastically, ranging from 55% to 80%. The economic impact of mineral loss directly affects profitability. Replacing lost ash with fresh filler at the paper machine costs money. Parameter tuning must align with your final product requirements. For example, tissue manufacturers want maximum ash removal to improve sheet softness and absorbency. Graphic paper manufacturers want to retain ash to improve opacity and reduce raw material costs.
Navigating the Brightness Ceiling
Every pulp slurry has a brightness ceiling. This is the point at which increasingly aggressive parameters yield diminishing returns. Pushing a flotation cell past this ceiling severely penalizes your yield without noticeably improving the final sheet appearance. You end up burning energy, consuming excess chemicals, and losing fiber for a fraction of a brightness point.
The most effective strategy involves rapid ink segregation. You must remove and segregate ink quickly after detachment in the pulper. If ink remains in the slurry too long, mechanical agitation breaks it down into microscopic particles. These particles redeposit into the lumen (the hollow center) of the cellulose fibers. Once inside the lumen, no amount of flotation can remove them. Rapid segregation prevents redeposition, resulting in higher final brightness even at equal overall ink removal rates.

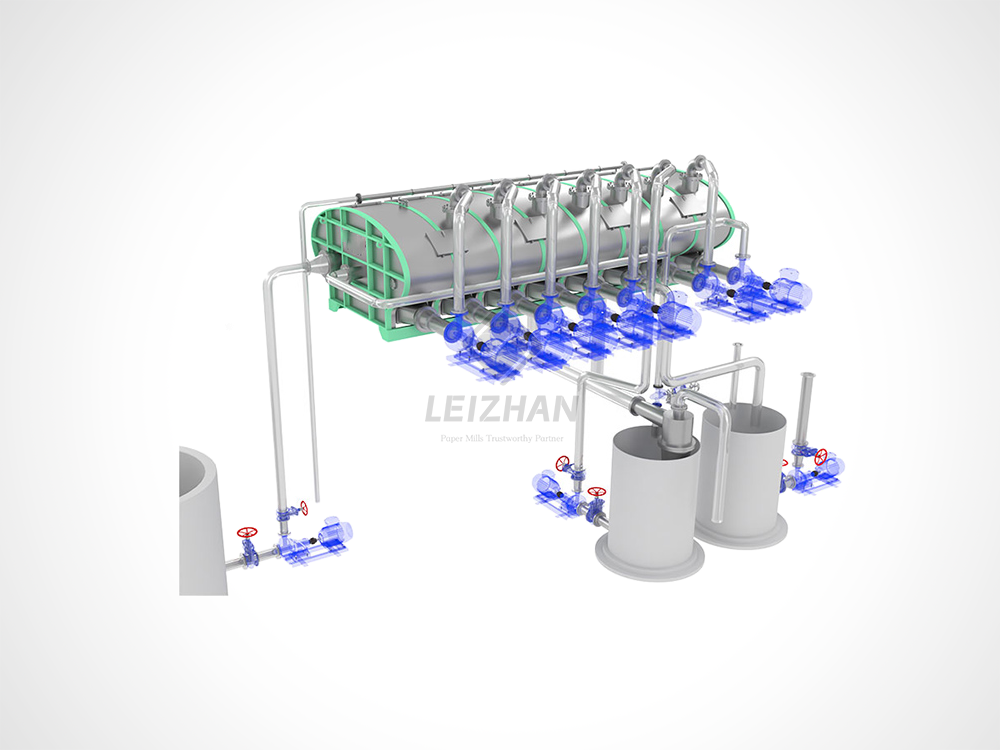

Maximizing Recovery with Multi-Stage (Cascade) Flotation Architecture
You cannot push a single stage to achieve both maximum brightness and maximum yield. Modern facilities overcome this compromise by utilizing multi-stage, or cascade, flotation architecture. This setup divides the process into primary and secondary (reject) stages. The primary stages operate aggressively to hit brightness targets, accepting a certain amount of fiber entrainment in the froth.
The secondary cells process the reject froth generated by the primary cells. Their sole purpose is to recover entrained fibers. They operate with different aeration and consistency parameters, allowing the heavy fibers to sink while the ink floats away. The recovered fiber routes back into the main system. This cascade architecture ensures high system-wide yield without sacrificing the aggressive ink removal required in the primary stages.
The primary cells receive the main pulp flow, injecting high volumes of air to maximize ink removal.
The accepts from the primary cells move forward to the fine screening or washing stages.
The reject froth from the primary cells drops into a collection tank and is pumped to the secondary cells.
The secondary cells operate at a lower consistency and lower aeration rate to gently separate trapped fibers from the concentrated ink.
The accepts from the secondary cells (recovered fiber) are routed back to the feed of the primary cells.
The reject froth from the secondary cells is sent to the sludge press for final disposal.
| Parameter | Primary Flotation Stage Goal | Secondary (Reject) Stage Goal | Impact on Z-Factor |
| Aeration Rate | High (Maximize ink-bubble collision) | Low (Minimize hydraulic turbulence) | Balances total ink removal against fiber entrainment. |
| Consistency | 1.0% - 1.5% (Optimal mixing) | Less than 1.0% (Allows heavy fibers to drop) | Prevents thick slurries from trapping usable fines in froth. |
| Froth Removal | Aggressive skimming | Controlled, slow skimming | Recovers up to 60% of fibers lost in the primary stage. |
| Chemical Dosing | High surfactant (Generate stable froth) | Zero additional chemicals | Prevents chemical buildup while maximizing physical separation. |
Implementation Risks and Equipment Scalability
Retrofitting vs. Upgrading the Pulp Deinking Machine
Plant managers face a critical decision when equipment ages. You must decide when to retrofit existing cells versus investing in new architecture. Retrofitting offers a lower initial capital expenditure. Upgrading aeration nozzles, replacing worn mechanical scrapers, or installing variable frequency drives (VFDs) on pumps can yield immediate improvements. However, retrofits cannot fix fundamental volume limitations or poor tank geometry.
Investing in a new, multi-stage pulp deinking machine provides scalable performance. New equipment offers optimized tank geometries that prevent dead zones and short-circuiting. When evaluating new systems, you must discuss the footprint and energy consumption implications. Modern cascade architectures require more floor space and complex piping networks. However, the energy savings from highly efficient aeration pumps and the revenue gained from recovered fiber often justify the investment within a few operational quarters.
Process Control and Automation Integration
Manual parameter adjustments no longer suffice in high-speed waste paper recycling facilities. The incoming waste stream varies wildly in ink content, ash levels, and fiber quality. Relying on operators to manually adjust valves based on visual froth inspection guarantees inconsistency. You must integrate automated parameter control to maintain steady-state operations.
Modern systems utilize real-time optical brightness sensors installed directly in the pulp flow. These sensors feed data to programmable logic controllers (PLCs). The PLCs automatically adjust chemical dosing pumps and aeration valves to maintain the exact Z-factor required. Automation mitigates operator error. It prevents chemical overdosing during clean waste runs and ramps up aggression during heavily inked runs. This dynamic control ensures scalable, consistent performance regardless of raw material fluctuations.
Conclusion
Take the following steps to improve your current operation:
Audit current aeration nozzles for wear and replace any units producing bubbles larger than 2 millimeters.
Install inline optical brightness sensors before and after the primary stage to establish a real-time baseline.
Measure water hardness daily and adjust calcium chloride dosing to maintain 150-250 ppm for optimal soap precipitation.
Calculate your current Z-factor by comparing laboratory ink removal rates against daily pulper yield reports.
FAQ
Q: What is the ideal pH for a flotation deinking cell?
A: The ideal pH typically ranges from 9.5 to 10.5. These highly alkaline conditions are necessary to swell the cellulose fibers. Fiber swelling physically breaks the bonds between the fiber surface and the ink particles, allowing surfactants to detach the ink effectively.
Q: How does bubble size affect recycled paper deinking?
A: Bubble size directly dictates collision and attachment efficiency. Ink particles (10-100 microns) require specific bubble diameters, usually 1 to 2 millimeters. Bubbles that are too large create bow waves that push ink away. Bubbles that are too small lack the buoyancy to lift heavy ink agglomerates.
Q: What is the difference between washing and flotation in waste paper recycling?
A: Washing dilutes pulp and screens out particles smaller than 10 microns, but it causes massive yield loss by washing away usable fines. Flotation uses air bubbles to target larger particles (10-100 microns). It retains much higher fiber and mineral yield but requires precise chemical control.
Q: How can I improve fiber yield in my pulp deinking machine?
A: You can improve yield by lowering aeration rates to reduce hydraulic turbulence, which prevents fibers from being dragged into the froth. Additionally, optimizing froth removal speed and utilizing secondary (cascade) recovery cells will capture entrained fibers from the reject stream.
Q: What role does sodium silicate play in ink removal equipment?
A: Sodium silicate acts as a powerful dispersant and a peroxide stabilizer. It prevents detached ink particles from clumping together in the alkaline slurry. However, it must be balanced carefully, as excessive silicate can interfere with surfactant performance and froth stability.
Q: What is the Z-factor?
A: The Z-factor is the industry-standard metric for deinking selectivity. It calculates the exact ratio of ink removed versus the amount of usable fiber and mineral filler lost in the reject stream. A higher Z-factor indicates a highly efficient, profitable separation process.
